Chevrolet Spark Owners Manual: Instrument Panel Fuse Block

Chevrolet Spark. Instrument Panel Fuse Block

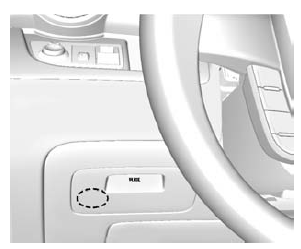

The instrument panel fuse block is on the underside of the driver side instrument panel.

Chevrolet Spark. Instrument Panel Fuse Block


Open the fuse panel door by pulling out at the top.

Chevrolet Spark. Instrument Panel Fuse Block


Remove the fuse panel door diagonally.

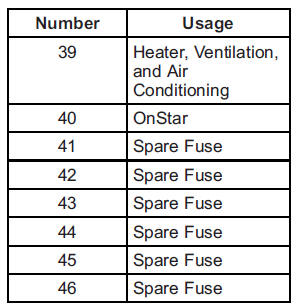

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Chevrolet Spark. Instrument Panel Fuse Block


Chevrolet Spark. Instrument Panel Fuse Block


Chevrolet Spark. Instrument Panel Fuse Block


Chevrolet Spark. Instrument Panel Fuse Block


Engine Compartment Fuse Block
The engine compartment fuse block is on the driver side of the vehicle, near the battery. Caution Spilling liquid on any electrical component on the vehicle may damage it. Always keep the co ...
