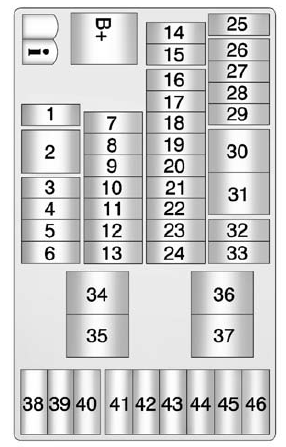

Chevrolet Spark Owners Manual: Instrument Panel Fuse Block

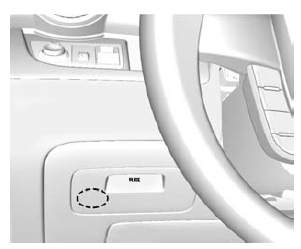

The instrument panel fuse block is on the underside of the driver side instrument panel.
Open the fuse panel door by pulling out at the top.
Remove the fuse panel door diagonally.

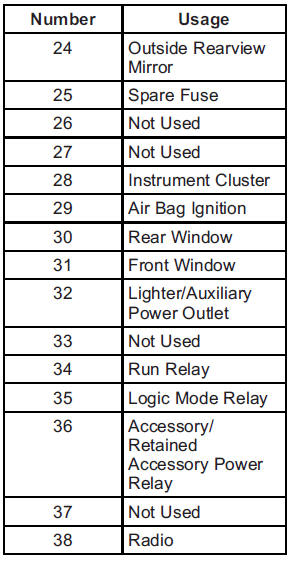

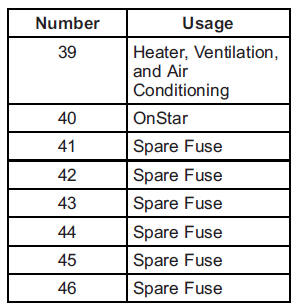

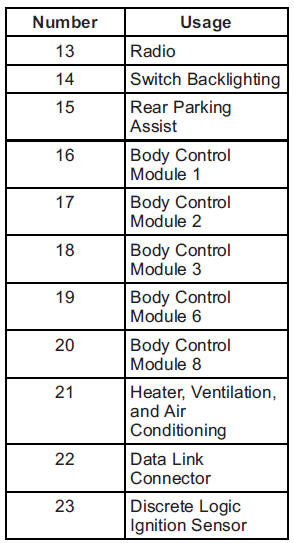

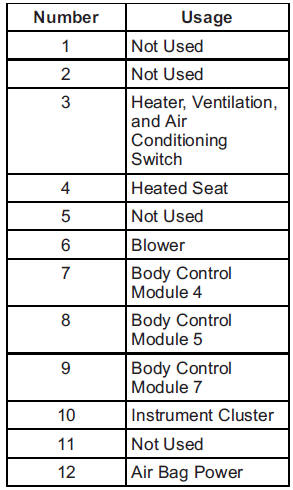

The vehicle may not be equipped with all of the fuses, relays, and features shown.
Engine Compartment Fuse Block
The engine compartment fuse block is on the driver side of the vehicle, near
the battery.
