Chevrolet Spark Owners Manual: Engine Compartment Fuse Block

Chevrolet Spark Owners Manual / Vehicle Care / Electrical System / Engine Compartment Fuse Block

Chevrolet Spark. Engine Compartment Fuse Block


The engine compartment fuse block is on the driver side of the vehicle, near the battery.

Caution

Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

To access the fuses, press the tab at the front of the cover, and lift the cover.

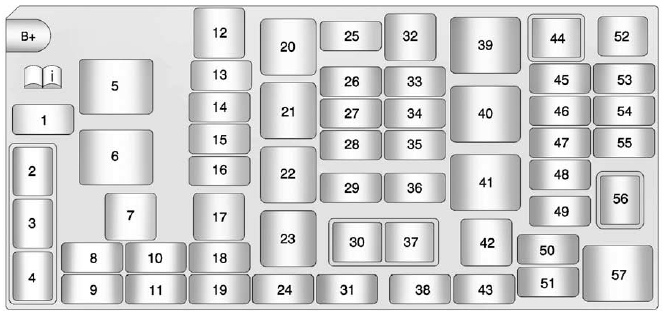

Chevrolet Spark. Engine Compartment Fuse Block


The vehicle may not be equipped with all of the fuses, relays, and features shown.

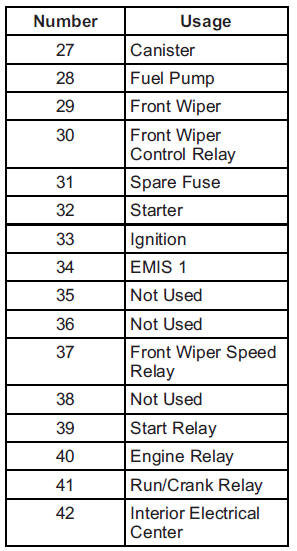

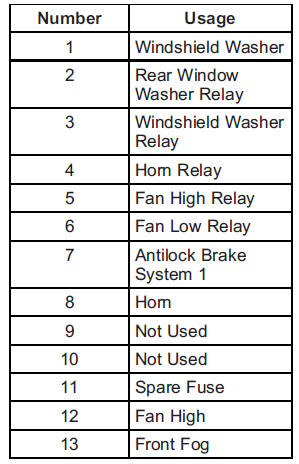

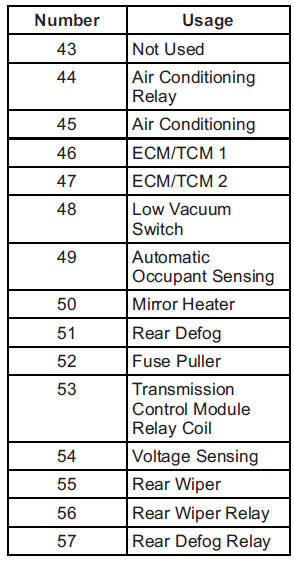

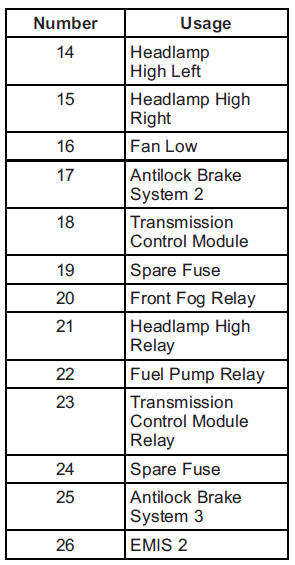

Chevrolet Spark. Engine Compartment Fuse Block


Chevrolet Spark. Engine Compartment Fuse Block


Chevrolet Spark. Engine Compartment Fuse Block


Chevrolet Spark. Engine Compartment Fuse Block


Auxiliary Fuse Block

Chevrolet Spark. Auxiliary Fuse Block


The auxiliary fuse block is on the driver side of the vehicle, near the battery.

To access the fuses, press the tab at the side of the cover, and lift the cover.

Chevrolet Spark. Auxiliary Fuse Block


The vehicle may not be equipped with all of the fuses, relays, and features shown.
